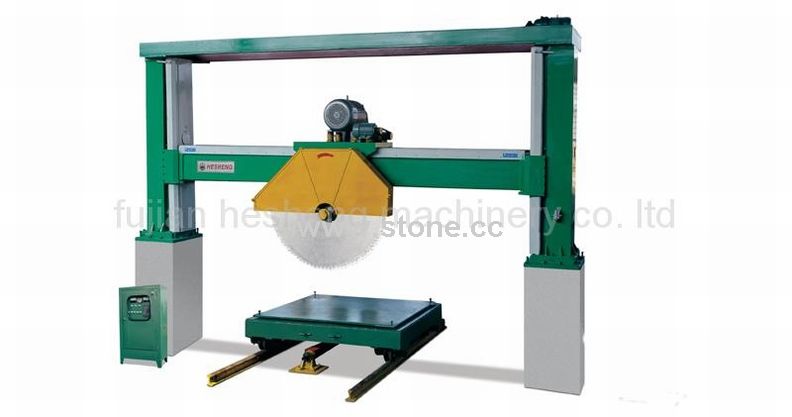

Gantry Cutting Machine

• Place of Origin:

   China

• Type:

  Sawing and Cutting Machinery

• Genre:

  Machinery & Equipment

• sCode:

  STPR1280162

• Place of Origin:

  China
• Adopting dual columns, crossbeam lifting system and dual-axis spindle box, the machine can fulfill cutting task in one time and dispense with the need for discharging the slabs when processing large blocks. When cutting normal slabs, the machine can also work with the load of 3 bigger blades and 3 smaller blades. It is preferred equipment for cutting large-size slab and trimming edges of blocks.

  Technique Parameter:
  Model                       2500                   3500
  Max. Diameter of blade      ?500mm                ?500mm
  Number of blades            6P                     6P
  Lifting travel              1500mm                 2000mm
  Transverse cutting travel   4200mm                 4200mm
  Power of main motor         37kw                   37kw
  Max cutting size(L*W*H)     4000*2500*1500mm       4000*2500*2000mm
  Gross weight                12.5T                  13.5T
